RXL-A 30W Braking Power Resistor

RXL-A 30W Braking Power Resistor

Product Introduction:

• Product Features: Simple structure, excellent heat dissipation, small size, high power, and high energy absorption.
• Application Areas: Variable frequency drive braking field.

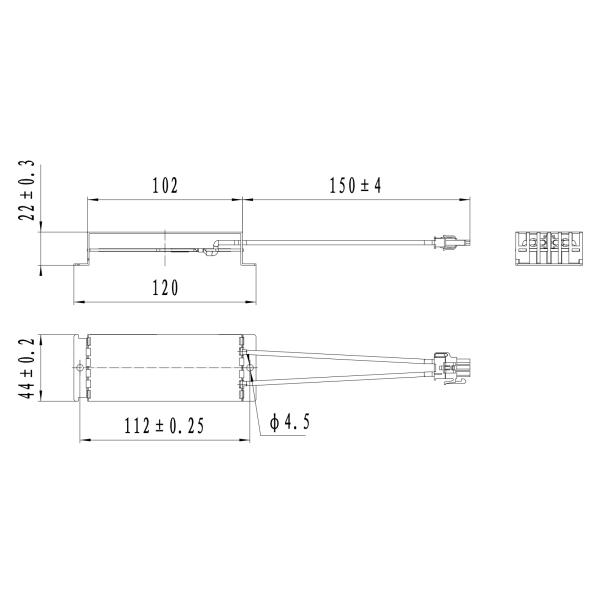

Size:

specifications and models	rated power(W)	resistance range(Q)
RXL-A-30W	30	1～300

Key Test Items:

Test Items:	Test Conditions:	Performance Requirements:	Test Standards:
Insulation resistance	Voltage: (500±50) Vdc, 1 minute, between output terminal and bracket	Insulation Resistance: ≥50MΩ	GB/T 5729-2003 Section 4.6
Voltage endurance	Voltage: 2500Vac, 1 minute, between output terminal and bracket	No breakdown, no arcing	GB/T 5729-2003 Section 4.7
Vibration	Frequency: (10-55) Hz, Amplitude: 0.2mm or Acceleration: 1.3g, 6 hours	ΔR ≤ ±(1.0%R + 0.05Ω)	GB/T 2423.10-2019
Temperature rise	Ambient temperature: (15-30) ℃, rated power	Temperature rise: ≤450℃	GB/T 5729-2003 Section 4.14

Note:

1,This resistor has high braking energy and short braking time, allowing for natural heat dissipation. When initially installing and using it, please read this specification and consult technical personnel to avoid operating outside the specified parameters. Pay special attention to the following points:

2,Installation: Secure the resistor to the mounting surface using the 4 mounting holes.

3,Due to the high operating current of this resistor as per the specification, ensure reliable electrical connections at the cable terminals to reduce contact resistance.

Ordering Example:

Model Number :RXL-A 30W

Rated Power:30W

Nominal Resistance:30Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
