RY0990 Type Pulse Oxidation Film Fixed Resistor

RY0990 type pulse oxidation film fixed resistor

1. Purpose:

used for high voltage pulse electronic equipment and other pulse electronic circuits.

2. Packaging form:

green insulating paint coating

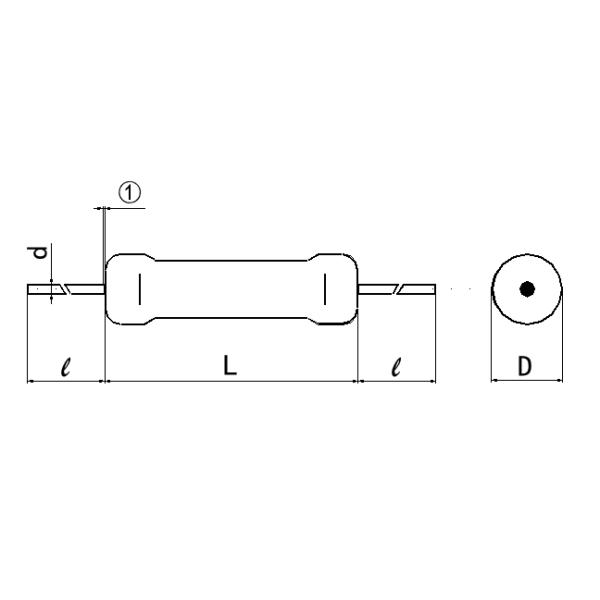

3. External size:

Note ①: The resistance and allowable deviation are directly marked on the main body of the product.

70℃ rated power consumption (W)	outline dimension mm				maximum weight (g)
	Lmax	Dmax	l	d
1	25	φ6.6	30±2	0.8±0.05	1.5
2	30	φ8.0			2.4

4. Main technical indicators:

power rating (W)	Resistance range (kΩ)	Resistance accuracy (±%)	Component limit voltage (V)	Pulse limit voltage (k V)	surge	resistance-temperature characteristic ×10-6/℃
1	2-3.9	5	500	15	Voltage 8kV Capacitor 0.08µF	200
2	12-24	5	700
