RXQAN Varnished Wirewound Resistor

RXQAN Varnished wirewound resistor

Product Introduction:

• Product Features: Lead-out with axial threaded hole for bolt installation. Surface coated, high-temperature resistant, flame retardant.
• Application Areas: Direct current or low-frequency alternating current circuits in high-power electrical equipment.
• Product Standard: Detailed specifications for Q/RW520-2016 RXQAN type coated wirewound fixed resistors.
• Non-inductive products can be provided upon negotiation, denoted by adding "N" before the model number.
• Products can be manufactured to comply with RoHS and REACH requirements.

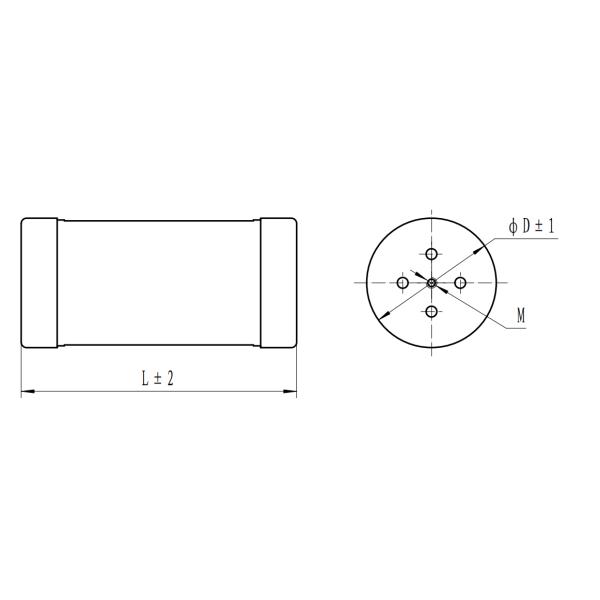

Size:

specifications and models	rated power(W)	Impulse power	resistance range(Ω)	Size (mm)
		(W)(2min)		L	D	M
RXQAN-160	150	200	20～2.4K	150	Φ37	6
RXQAN-250	200	300	30～3.6K	150	φ55	8
RXQAN-500	300	500	43～4.7K	153	φ73	default 8
RXQAN-1000	600	1000	82～10K	308		(customizable
RXQAN-1500	800	1500	130～10K	428		6,10,12,16)
RXQAN-2000	1000	2000	160～10K	528

Key Test Items:

Test Items:	Test Conditions:	Performance Requirements:	Test Standards:
Temperature rise	Ambient temperature: (15-30) ℃, rated power	≤400℃	GB/T 5729-2003 Section 4.14
Rapid temperature changes	Temperature range: (-55 to +125) ℃, 5 cycles	ΔR ≤ ±(1%R + 0.1Ω)	GB/T 2423.22-2002
Impact resistance	Acceleration: 150m/s2, time: 11ms, half-sine wave	ΔR ≤ ±(1%R + 0.1Ω)	GB/T 2423.05-1995
Vibration	Frequency: (10-55) Hz Amplitude 0.75mm or acceleration 98m/s2, 1 hour	ΔR ≤ ±(1%R + 0.1Ω)	GB/T 2423.10-2008
Steady-state damp heat	Temperature: (40±2) ℃, relative humidity: (93±3)%, 96 hours	ΔR ≤ ±(5%R + 0.1Ω)	GB/T 2423.03-1993
Room temperature durability	Ambient temperature: (15-35) ℃, rated power, 1.5 hours powered; 0.5 hours off, 96 hours	ΔR ≤ ±(5%R + 0.1Ω)	GB/T 5729-2003 Section 4.25

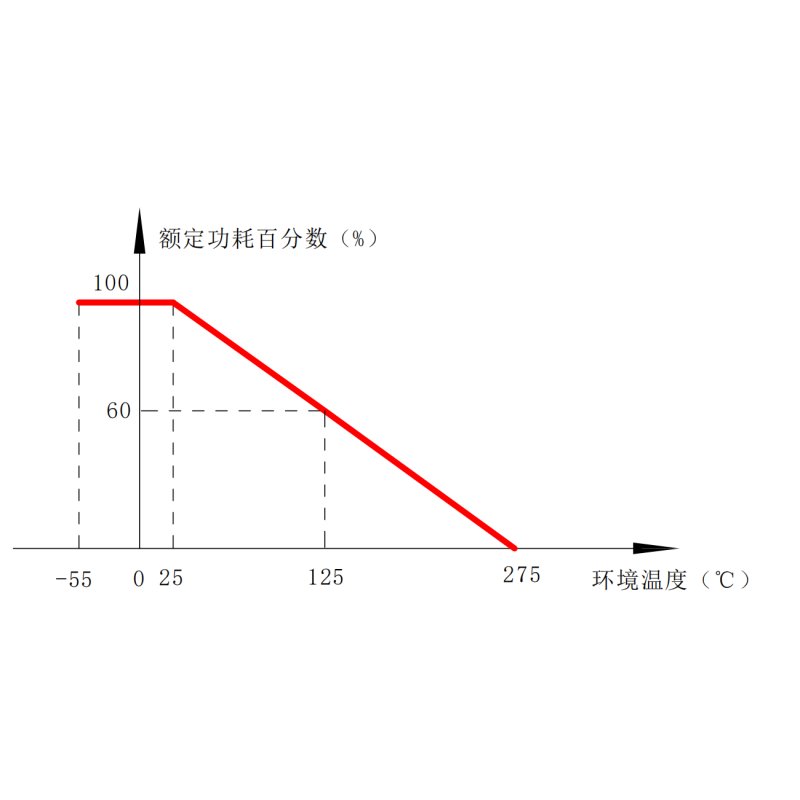

Power dissipation curve:

Ordering Example:

Model Number :RXQAN

Impulse power:200W

Nominal Resistance:400Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
